Raymarine

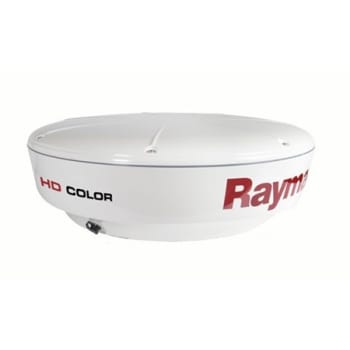

RD424HD 4kW 24" HD Digital Radome

Raymarine Digital Radome Antennas boast a wide range of features, including; - Plug and Play compatibility with: Raymarine C Series Widescreen, E Series and G Series multifunction navigation displays - Improved radiation pattern and bearing resolution using Propagation Enhanci.

Part number: E92143
RD424HD 4kW 24" HD Digital Radome

£2,370.45

Incl. VAT
Vision Marine

Vision Marine visionmarine.co.uk

Visit site
View prices from 3 sites About

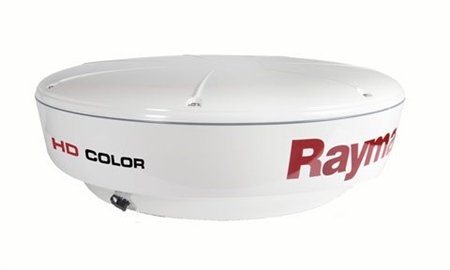

Raymarine RD424HD 4kW 24" HD Digital Radome

Raymarine Digital Radome Antennas boast a wide range of features, including; - Plug and Play compatibility with: Raymarine C Series Widescreen, E Series and G Series multifunction navigation displays - Improved radiation pattern and bearing resolution using Propagation Enhancing Geometry - Same mounting pattern as previous generation radomes - Utilises small SeaTalkHS interconnect cable for ease of installation. Compatible with: - aSeries Multifunction Displays - e Series Multifunction Displays - c Series Multifunction Displays - gS Series Multifunction Displays - Raymarine C Series Widescreen Multifunction Displays - Raymarine E Series Widescreen Multifunction Displays - Raymarine G Series Multifunction Navigation Specifications -Antenna Type: Patch Array -Beam Width (nominal): 3.9 horizontal, 25 vertical -Polarization: Horizontal -Rotation Rate: Range less than 3 miles 48 RPM (radar switches to 48 RPM automatically, unless 24 RPM is selected) Range greater than 3 miles - 24 RPM (nominal) -CE Approval: Conforms to 1999/5/EC -FCC Approval: Conforms to 47CFR Part 2 and Part 80 -Dimensions: 652 x 247 mm (25.7 x 9.7 in) -Weight: 10 kg (22 lbs) -Input Voltage: 12 - 24 V DC -Power consumption: 60 W (25 W Standby) -Temperature Range: -10 to +55C -Humidity Limit: up to 95% at 35C -Maximum Operating Wind Speed: 100 kts -Maximum Range Scale: - 48 NM range -IF Frequency: 70 MHz (nominal) -Receiver Characteristic: Linear -Receiver Noise Figure: Less than 5 dB (including Low Noise Converter/Limiter & IF Receiver) -Receiver Bandwidth: Matched digital filter for each pulse length -Transmitting Frequency: 9405 +/ 25 MHz -Transmitter: Solid-state modulator driving Magnetron -Standby Mode: Magnetron heater and control left on, all other services off -Duplexer: Circulator Excludes cable

Compare prices

About
Vision Marine RAYMARINE RD424HD 4KW 24 INCH HD RADOME (REQUIRES CABLE)
Out of stock 		£2,370.45
Incl. VAT 		Visit site
Cactus Navigation & Communication Rd424hd 4kw 24 Inch Hd Radome (requires Cable) (E92143)
New · In stock 		£2,776.63
Incl. VAT 		Visit site
Gael Force RD424HD 24 4kW HD Digital Radome - Standard
New · Out of stock 		£3,016.95
Incl. VAT 		Visit site
