Garmin

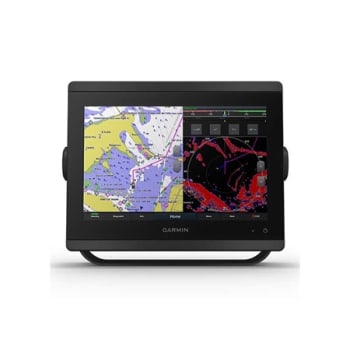

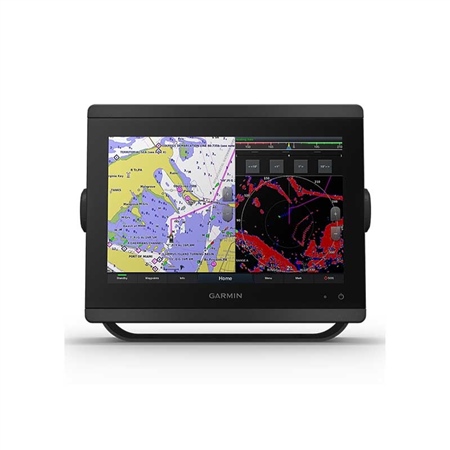

GPSMAP 8410 with 10" Touchscreen - Standard
Serious cruisers, sailors and sail racers demand serious equipment. The easy-to-use, easy-to-install GPSMAP® 8410 chartplotter delivers MFD performance in a combo-size package.
Part number: NE0100209100
Garmin GPSMAP 8410 with 10" Touchscreen - Standard
Serious cruisers, sailors and sail racers demand serious equipment. The easy-to-use, easy-to-install GPSMAP 8410 chartplotter delivers MFD performance in a combo-size package. It features a 10" full HD IPS touchscreen display for wider viewing angles, superior clarity and sunlight readability, even with polarised sunglasses. Multiple displays can be flat mounted edge-to-edge to create a sleek glass helm look or can be mounted flush. It also provides standard USB touch output for use as a touchscreen monitor for Windows and Mac operating systems.
Physical & Performance:
| Display size | 21.8 cm x 13.7 cm |
| Display resolution | WUXGA; 1920 x 1200 px |
| Physical dimensions | 25.9 cm x 20.5 cm x 7.5 cm |
| Receiver |
10 Hz GPS/GLONASS/Galileo |
| Water rating |
IPX7 |
| Mounting options | Bail, flat or flush. (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.) |
| Display type | Touchscreen IPS display (anti-glare finish) |
| Antenna | Internal or external over NMEA 2000 |
Maps & Navigation:
| Routes | 100 (250 waypoints each) |
| Track log | 50,000 points; 50 saved tracks |
| Accepts data cards |
2 SD cards (on back of unit) |
Features:
| ClearV |
yes (with GCV black box, sold separately) |
| Waypoints | 5,000 |
| Wireless connectivity |
Yes (with GCV black box, sold separately) |
| Sailing Features | Yes |
| NMEA 0183 compatible | Yes |
| SideV |
yes (with compatible black box sonar) |
| GCV Black Box sonar support | Yes |
| Wireless mouse compatible | No |
| NMEA 0183 input ports |
1 differential |
| Dual-beam (77/200 kHz) sonar capable | Yes (with external black box, sold separately) |
| Supports DSC (displays position data from DSC-capable VHF radio) | Yes |
| J1939 Compatible | Yes |
| Additional |
Supports spoken audio alerts |
| NMEA 2000 compatible | Yes |
| ActiveCaptain compatible |
yes |
| Supports AIS (tracks target ships position) | Yes |
| Video output ports |
1 HDMI |
| Polarized Support | Yes |
| Garmin Meteor Audio System compatible | Yes |
| Garmin Marine Network ports |
2 |
| Garmin Sonar compatible |
yes |
| GSD Black Box sonar support | Yes |
| Garmin SmartMode compatible (customisable monitor presets) | Yes |
| Wireless remote compatible | Yes |
| Garmin Helm compatible |
yes |
| Supports FUSION-Link compatible radios | Yes |
| Dual-frequency (50/200 kHz) sonar capable | Yes (with external black box, sold separately) |
| NMEA 0183 output ports |
1 differential |
| Tide tables | Yes |
| SiriusXM Weather & Radio compatible | Yes |
| CHIRP sonar technology | Yes_(when_connected_to_another_compatible_sonar_device) |
| Power consumption |
2.0 A |
| GRID (Garmin Remote Input Device) compatible | Yes |
| Garmin Radar compatible | Yes |
| Video input ports |
1 - BNC composite 1 - HDMI (HDCP compliant) |
